Loa cột DX4.4
Design |
1-way passive full range system |
Frequency range ±10 dB | 130Hz-18kHz |
Frequency range ±3 dB | 135Hz-17.5kHz |
Coverage angles (nominal) | 100°x 40°HT (hor. x vert.) |
Directivity index (DI) | 9 (+3.5/-2.5) 500Hz-12kHz |
Power handling (nominal) | 150 W |
SPL 2.83 V / 1 m | 98 dB |
Max. SPL | 126 dB (SPL peak / 1 m) |
Components | 4 x4" low-mid chassis |
Corssover | 130 kHz 12dB / octave Self-resetting |
Impedance | 8Ω |
Connectors | 2 x Neutrik Nl4 ±2 |
Enclosure | 15mm birch panels |
Point black waterproof paint surface, | |
16 x M8 hoisting machine wire | |
Dimensions (WxDxH) | 130 x 165 x 545mm |
Weight (kg) | N.W:6 G.W:8 |
- 4 x 4" 1-way high-power column loudspeaker
- 126 dB Max SPL output
- Vertical directivity from 126Hz upwards
- Low frequency extension at 130Hz use with DXB550, DXB1000
- Use with DXB15AP can expand low frequency limit.
- Good intelligibility and articulation even in reverberantant rooms
- Configuration with professional DSP processor
- Self resetable protection circuits for maximum Safety
- Easy for installation and assembling
- 8Ω system impedance
- With small and steady appearance design.

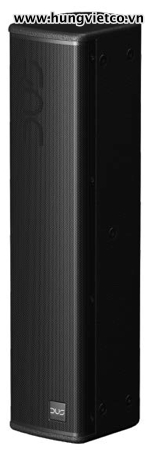

The DX4.4 is a product in DX series while belonging to DUS Brand. It is a one of the column speaker of the brand, continue with excellent quality of DUS product and also showing the exact and meticulous of the German series in the acoustically.
DX4.4 (Portable) use the technology of full - range and seamless connection, all frequencies are performed by 4 full - range loudspeaker, this speaker has high SPL and exact vocal performance. Similarly, it can provide between 130 Hz and 18Khz balance output, you can feel accurate sound image positioning. Four speakers arranged in a reasonable manner can effectively prevent the generation of comb filtering. And ensure that there will be not come out the big characteristic problem in IF section.
The DX4.4 (Portable) is a best choice for live performance of luxury hotel to provide live sound reinforcement system, small performance and vocal performance requirement are its strengths. In the constructed design, DX4.4 (Portable) use the principle of "fine, small, easy" and gives a fine, clean feeling in your vision. Functionally, It provide a frame in bottom bracket and special basket which can be simple achieve the installation and angle adjustment in the different ways. In the upscale places, you will not just see a simple speaker, it is more like an integration into the environment of art, just play the role of sound reinforcement.
The DX4.4 (Portable) enclosure is constructed from rigid marine plywood with a impact resistant black paint. The front of enclosure is protected by rigid metal grill and cover a replaceable acoustically transparent material, which can effectively prevent the product from erosion of the dust in daily use.
The DX4.4 (Portable) is a 1-way high-power Passive Column loudspeaker system for very good Speach and music reprodiction in diffcultconditions The Linear placement of the four mid/high transducers gives a 40 degree bertiacl pattern which is perfect for a good nearfeld to medium throw saturation even in reverberant rooms, no spillage onto ceilings and other surfaces that cause destructive reflections. Thedirectivity starts already at 250 Hz. That’s why the DX4.4 (Portable) is a perfect choice for speech ans music in :house of worship conference rooms, classrooms, historical rooms and modern(glass) architecture.
The optical integration of the DX4.4(Portable) can be made easily because of the neat, silm-line design ans Rounded cxoustiacl foam. Established is the use of the DX4.4(Portable) in eminent paging system for airports of the Railroad stations, shopping centre and Indutry.
The loudspeaker system is loaded wit Four 4″full-screen speaker form. Extra safety is given by the integrated cross-over with automatic resetable tweeterand woofer protection. The 4″transducers have amoistureproof coating.
For fixed installations and mobile applications there is a variety of mounting hardware available. The very good performance of the DX4.4 (Portable).
