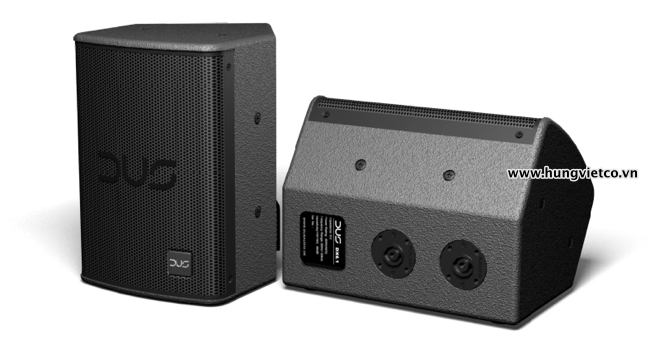

Loa cột DX6.1
Design | 1-way full range system |
Frequency range ±10 dB | 85Hz-30kHz |
Frequency range ±3 dB | 100Hz-25kHz |
Coverage angles (nominal) | 90°x 90°HT (hor. x vert.) |
Directivity index (DI) | 9 (+3.5/-2.5) 500Hz-10kHz |
Power handling (nominal) | 80W |
SPL 2.83 V / 1 m | 96dB |
Max. SPL | 121 dB (SPL peak / 1 m) |
Components | 6" full range |
Corssover | 80Hz - 12 dB / octave self-resetting protection circuit for 6" drivers |
Impedance | 8 Ω,Zmin.6.7Ω@600Hz |
Connectors | 2 x Speako NL4MP ±2 |
Enclosure | |
Traprzoidal enclosure,12mm | |
Finnish birch Multiplex with highly resistant | |
structured black or white paint | |
8 x M 6 thread inserts, compatible with | |
various mounting accessories, | |
ball proof steel grille with exchangeable, | |
acoustic foam covering with rounded | |
edges in 'Soft-Line'design | |
Dimensions (WxHxD) | 188 x 270 x 212mm |
Weight (kg) | N.W:4.5 G.W:6.1 |
• 1-way full range loudspeaker loaded with 1 x 6"
• Vertical directivity from 85Hz upwards
• Good intelligibility and articulation even in reverberant rooms
• For nearfield and medium throw appli-cations
• Self resetable protection circuits forma-ximum safety
• 8Ω system impedance
The DX6.1 is a 1-way full range passive column loudspeaker system for very good speech and music reproduction in diffcult conditions.The linear placement of the one mid/high transducers gives a 20 degree vertical pattern which is perfect for a good nearfeld to medium throw saturation even in reverberant rooms, no spillage onto ceilings and other surfaces that cause destructive reflections. The directivity starts already at 250 Hz. That's why the DX6.1 is a perfect choice for speech and music in: house of worship, conference rooms, classrooms, historical rooms and modern (glass) architecture.
The optical integration of the DX6.1 can be made easily because of the neat, slim-line design and rounded acoustical foam. Established is the use of the DX6.1 in eminent paging systems for airports, railroad stations, shopping centre and industry.
The loudspeaker system is loaded with one full range transducers. Extra safety is given by the integrated cross-over with automatic resetable tweeter and woofer protection. The 6" transducers have amoistureproof coating.
For fixed installations and mobile applications there is a variety of mounting hardware available. The very good performance of the DX6.1
