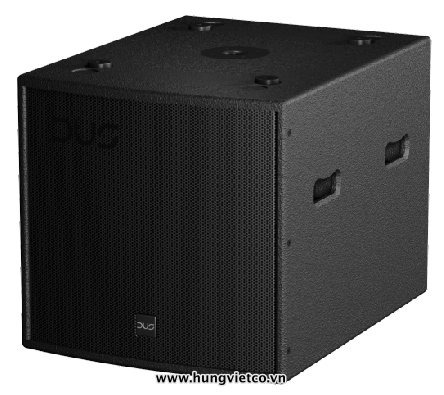

Loa Sub-woofer DSW600
Design | Sub-woofer system |
Frequency range ±10 dB | 40Hz-450Hz |
Frequency range ±3 dB | 45Hz-400Hz |
Coverage angles | maximum 120 Hz |
Power handling (nominal) | 600w |
SPL 2.83 V / 1 m | 97dB |
Max. SPL | 131 dB (SPL peak / 1 m) |
Components | 15” low-mid chassis |
Corssover | 30Hz (-12dB) outside DSP |
Impedance | 8Ω |
Connectors | 2 x Neutrik Nl4 ±1 |
Enclosure | 18mm birch panels |
Highly resistant structured point | |
paint black surface | |
4 ergonomic butterfly handles | |
Dimensions (HxWxD) | 484 x 489 x 646mm |
Weight (kg) | N.W:31 G.W:33 |
• 1x15" top-of-the-line Subwoofer, directradiation
• Minimal dimensions, suspendable
• Frequency range down to 40 Hz(-10dB)
• High attainable maximum sound pres sure level 131dB (peak/1m/full room)
• Heavy-duty 15"chassis (2.4kW peak) Max.Excursion +/-15mm
When a strong sub-bass foundation is desired, the high power Subwoofer DSW600 is the ideal supplement to the Full Range Systems.
The extremely compact dimensions of the DSW600 are just as convincing as the enormous sub-bass and the attainable maximum sound pressure.
The DSW600 is designed for universal use at the highest level. The subwoofer reproduces a lower frequency of 40 Hz for use as Iow frequency range system in theaters or in the cinema as well as the precise contoured bass punch at live and club events.
The DSW600 is equipped with a newly developed 15" chassis which can bear peaks of up to 2400W and because of its high linear deflection, it is capable of moving large volumes of air. The frictional losses and distortions which normally occur because of the high air velocity have been substantially reduced because of a new tunnel and enclosure design. Compared to conventional constructions, the exponential tunnel geometry of the
DSW600 plays a crucial role in the outstanding performance and the compact dimensions.
Optionally, the DSW600 can be delivered with a selectable Iow-pass filter which facilitates, as desired, simple parallel operations with the Full Range Systems or the operation with an external active electronic system, i.e. with the digital system controller.
The DSW600 is an impressive bass system which combines excellent reproduction in the Iow frequency range with excellent sound pressure in compact form and is recommendable for a wide variety of professional uses.
