Design: 2-way active system

Frequency range: 60Hz-18kHz (LF / HF)

Power handling (nominal): 500W

SPL  4V / 1 m: 100 dB

Max. SPL: 127 dB (SPL peak / 1 m)

Components:  2 x 10" low-mid chassis, 1x 1.4" HF

Design: 3-way active system

Frequency range: 55Hz-1.2KHz / 200Hz-4.5kHz / 600Hz-18kHz (LF /MF/ HF)

Power handling (nominal): 800W / 240W / 200W (LF /MF/ HF)

SPL  4V / 1 m: 98dB / 102dB / 112dB (LF /MF /  HF)

Max. SPL: 130dB / 131.8dB /141dB (LF / MF / HF)

Components:  2 x 12" low drivers, 6 x 4" mid-drivers, 2 x 1.4"Exit /3"Voice coil

Design: 2-way full range system

Frequency range: 60Hz-18kHz (LF / HF)

Power handling (nominal): 500W

SPL  4V / 1 m: 100 dB

Max. SPL: 127 dB (SPL peak / 1 m)

Components:  2 x 10" low-mid chassis, 1x 1.4" HF

Design: 2-way active system

Frequency range: 55Hz-1000Hz / 110Hz-18kHz (LF / HF)

Power handling (nominal): 800W / 240W LF / HF)

SPL  4V / 1 m: 95dB / 102dB (LF / HF)

Max. SPL: 130dB / 132dB (LF / HF)

Components:  4 x 10" low-mid chassis, 6 x 4" mid-HF

Design: 2-way active system

Frequency range: 55Hz-1000Hz / 110Hz-18kHz (LF / HF)

Power handling (nominal): 800W / 240W LF / HF)

SPL  4V / 1 m: 100dB / 102dB (LF / HF)

Max. SPL: 135dB / 132dB (LF / HF)

Components:  2x12"low-mid chassis, 6x4"mid-HF

Power handling: 450W/75W(LF/HF)

Design 2-way coaxial system

Frequency range: 60Hz - 3KHz / 500-18kHz (LF/HF)

SPL  4V / 1 m: 103dB/110dB (LF/HF)

Max. SPL: 135.6dB/134.8dB (LF/HF)

Components:  15" low-mid chassis, 1.4" HF

Power handling: 800W/75W (LF/HF)

Design 2-way coaxial system

Frequency range: 60Hz - 3KHz / 500-18kHz (LF/HF)

SPL  4V / 1 m: 105dB/110dB (LF/HF)

Max. SPL: 140.1dB/110dB (LF/HF)

Components:  2x12"low-mid chassis, 1.4" HF

Power handling: 450W

Design 2-way passive system

Frequency range: 45Hz -18kHz

SPL  4V / 1 m: 98 dB

Max. SPL: 131 dB

Components:  1 x15"low-mid chassis, 1" HF

Power handling: 350W

Design 2-way passive system

Frequency range: 50Hz-18kHz

SPL  4V / 1 m: 97dB

Max. SPL: 128 dB

Components:  1 x12" low-mid chassis, 1" HF

Power handling: 900W

Design 2-way passive system

Frequency range: 45Hz -18kHz

SPL  4V / 1 m: 102dB

Max. SPL: 138 dB

Components:  2 x15" low-mid chassis, 1.5" HF

Impedance: 4 Ω

Power handling: 450W

Design 2-way passive system

Frequency range: 50Hz -18kHz

SPL  4V / 1 m: 98 dB

Max. SPL: 125 dB

Components:  1 x15" low-mid chassis, 1.5" HF

Impedance: 8 Ω

Power handling: 350W

Design 2-way passive system

Frequency range: 55Hz -18kHz

SPL  4V / 1 m: 97dB

Max. SPL: 123dB

Components:  1 x12" low-mid chassis, 1" HF

Impedance: 8Ω

Power handling: 300/600W

Design 2-way passive system

Frequency range: 40Hz -18kHz

SPL  4V / 1 m: 97dB

Max. SPL: 128 dB

Components:  1 x15" low-mid chassis, 1" HF

Impedance: 8Ω

Power handling: 600W/1200W

18" Sub-woofer system

Frequency range: 35Hz -300Hz

SPL  2.83 V / 1 m: 98dB

Max. SPL: 132 dB

Components:  1 x 18" low-mid chassis

Impedance: 8Ω

Power handling: 1800W/3600W

21" Sub-woofer system

Frequency range: 25Hz -250Hz

SPL  2.83 V / 1 m: 98dB

Max. SPL: 137 dB

Components:  1 x 21" low-mid chassis

Impedance: 8Ω

Power handling: 1200W/2400W

2 x 15" Sub-woofer system

Frequency range: 35Hz -400Hz

SPL  2.83 V / 1 m: 99 dB

Max. SPL: 136dB

Components:  2 x 15" low-mid chassis

Impedance: 4Ω

Power handling: 2000W/4000W

2 x 18" Sub-woofer system

Frequency range: 35Hz -300Hz

SPL  2.83 V / 1 m: 106 dB

Max. SPL: 145 dB

Components:  2 x 18" low-mid chassis

Impedance: 4Ω

Power handling: 1400W/2800W

2 x 18" Sub-woofer system

Frequency range: 25Hz -300Hz

SPL  2.83 V / 1 m: 108 dB

Max. SPL: 134 dB

Components:  2 x 18" low-mid chassis

Impedance: 4Ω

Power handling: 700W/1400W

1 x 18" Sub-woofer system

Frequency range: 25Hz -300Hz

SPL  2.83 V / 1 m: 100dB

Max. SPL: 127dB

Components:  1 x 18" low-mid chassis

Impedance: 8Ω

Power handling: 1200/2400W

Design 2-way passive system

Frequency range: 50Hz - 20kHz

SPL  4V / 1 m: 102dB

Max. SPL: 133 dB

Components:  2 x 15" low-mid chassis, 2" HF

Impedance: 4 Ω

Power handling: 600/1200W

Design 2-way passive system

Frequency range: 40Hz - 20kHz

SPL  4V / 1 m: 100dB

Max. SPL: 127 dB

Components:  1 x 15" low-mid chassis, 2" HF

Impedance: 8 Ω

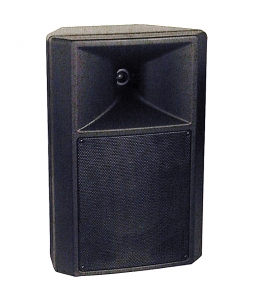

Model: MC-15

Power (RSM– Peak): 300W – 600W

System Sensitivity: 98 dB

Frequency Response (±3dB): 50 Hz – 18 kHz

Dimensions (W x H x D): 450 x 690 x 360mm
