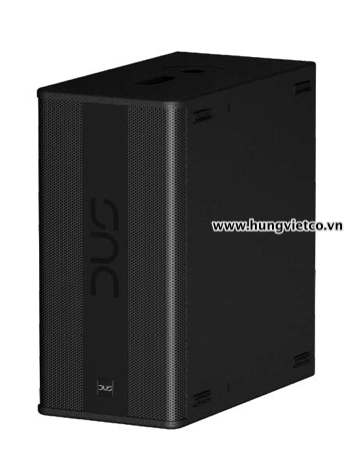

2 x 10" Sub-woofer DXB 550
Design | Sub-woofer system |
Frequency range ±10 dB | 35Hz-300Hz |
Frequency range ±3 dB | 40Hz-250Hz |
Crossover frequencies | maximum 120 Hz |
Power handling (nominal) | 400 W |
SPL 2.83 V / 1 m | 93dB |
Max. SPL | 125 dB (SPL peak / 1 m) |
Components | 2 x 10" low-mid chassis |
Corssover | 40Hz (-12dB) outside DSP |
Impedance | 16Ω |
Connectors | 2 x Neutrik Nl4 ±1 |
Enclosure | |
15 mm birch panels | |
Highly resistant structured | |
paint white surface | |
1 ergonomic butterfly handles, | |
Dimensions (WxHxD) | 290 x 540 x 585mm |
Weight (kg) | N.W:22.3 G.W:25.5 |
• 2x10" top-of-the-line Subwoofer,
directradiation
• Minimal dimensions, suspendable
• Frequency range down to 35Hz(-10dB)
• High attainable maximum soundpres
surelevel 124dB (peak/1m/full room)
• Heavy-duty 10"chassis (1600W peak) Max.Excursion +/-12mm
When a strong sub-bass foundation is desired, the high power Subwoofer DXB550 is the ideal supplement to the Full Range Systems
The extremely compact dimensions of the DXB550 are just as convincing as the enormous sub-bass and the attainable maximum sound pressure.
The DXB550 is designed for universal use at the highest level. The subwoofer reproduces a lower frequency of 35 Hz for use as Iow frequency range system in theaters or in the cinema as well as the precise contoured bass punch at live and club events.
The DXB550 isequipped with a newly developed 10" chassis which can bear peaks of up to 1600W and because of its high linear deflection, it is capable of moving large volumes of air. The frictional losses and distortions which normally occur because of the high air velocity have been substantially reduced because of a new tunnel and enclosure design. Compared to conventional constructions, the exponential tunnel geometry of the DXB550 plays a crucial role in the outstanding performance and the compact dimen sions.
Optionally, the DXB550 can be delivered with a selectable Iow-pass filter which facilitates, as desired, simple parallel operations with the Full Range Systems or the operation with an external active electronic system, i.e. with the digital system controller.
The DXB550 is an impressive bass system which combines excellent reproduction in the Iow frequency range with excellent sound pressure in compact form and is recommendable for a wide variety of professional uses.
