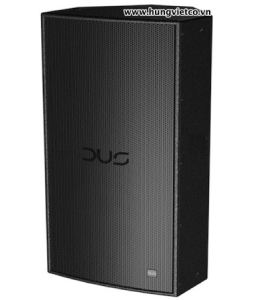

Loa Full-Range DUS Audio X-10
Design | 2-way passive system |
Frequency range | 50Hz -18kHz |
Coverage angles (nominal) | 90°x 90°HT (hor. x vert.) |
Directivity index (DI) | 12 (+2 / -3) 500Hz-14kHz |
Power handling Nominal: Continuous: Peak: |
150W 300W 600W |
SPL 4V / 1 m | 95dB |
Max. SPL | 123dB (SPL peak / 1 m) |
Components | 1x 10" low-mid chassis |
1" high frequency driver with 44 mm Titanium |
|
diaphragm on a rotatable horn |
|
Corssover | 1.8 KHz 18 dB / octave, automatic resetable |
driver protection, passive allpass filter to | |
optimise phase esonse and time alignment | |
Impedance | 8 Ω |
Connectors | 2x Nl4 Speakon ±2 |
Enclosure | |
Trapezoidal enclosure with extra cluster | |
angles out of 15 mm multiplex with highly | |
resistant structured paint in black, | |
2 ergonomic butterfly handles | |
ball proof steel grille with exchangeable, | |
acoustic foam | |
Flyware | 9 flying points |
Dimensions (W x H x D) | 340 x 545 x 312 mm |
Weight (kg) | N.W: 17.5kg G.W: 20.2kg |
• Wide - bandwidth system
• Use rotatable 90° x 90° horn
• Top hat fitting for speaker stand mounting
• 1 exit compression driver
The X-10 is a high power, compact two-way system with a new vented - chassis 10 LF driver and a new 1 exit compression driver mounted rotatable 90° x 90° constant directivity HF horn, the LF driver has a tough, features a high BL motor with a flat-wire copper coil and aluminium demodulating ring. That reduces intermodulation distortion and improves midrange performance when driver hard, increased excursion is available by virtue of a triple roll surround and deep motor structure. The directivity of the LF driver has been matched to the HF horn in the crossover region by improved crossover design and cone profile optimisation, also the new HF compression driver utilises an ultra-lightweight kapton diaphragm for extended high frequency response.
The X-10 is a ideal choice for full-range applications calling an efficient, reliable workhorse that is equally suitable for fixed installations or quick deployment mobile operations. It's ergonomic design and rotatable HF horn make near-ceiling mounting and aiming easy in the venues with restricted height, whilst its multi-angle floor monitor, nine M8 insert and four M8 bracket inserts make a variety of mounting methods possible including horizontal and vertical mounting.
The X-10 come with a top hat fitting for speaker stand mouting. This fitting can also be used as a pole socket when the X-10 is used with sub-woofer.
