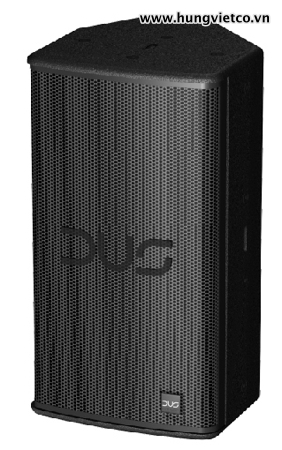

Loa 2 way full range DX8.1
| Design | 2-way passive system |
|
Frequency range ±10 dB |
70Hz-18kHz |
|
Frequency range ±3 dB |
80Hz-17kHz |
|
Coverage angles (nominal) |
90°x 50°HT (hor. x vert.) |
|
Directivity index (DI) |
9 (+3.5/-2.5) 500Hz-10kHz |
|
Power handling (nominal) |
150 W |
| SPL 2.83 V / 1 m | 93 dB |
| Max. SPL | 121 dB (SPL peak / 1 m) |
| Components | 8" low-mid chassis 44mm drive with horn |
| Corssover | 1.8 kHz 18 dB / octave Self-resetting |
| protection circuit for 8" and 1" drivers | |
| Impedance | 8 Ω,Zmin.6.7Ω@600Hz |
| Connectors | 2 x Speakon NL4MP±2 |
| Enclosure | |
| Traprzoidal enclosure,15mm | |
| Finnish birch Multiplex with highly resistant | |
| structured black or white paint | |
| 17 x M8 thread inserts, compatible with | |
| various mounting accessories, | |
| ball proof steel grille with exchangeable, | |
| acoustic foam covering with rounded | |
| edges in 'Soft-Line'design | |
|
Dimensions (WxHxD) |
260 x 480 x 279mm |
| Weight (kg) | N.W:12 G.W:15.5 |
• 2-way full-range loudspeaker system LoadedWith 8"/1"
• Very precise coverage in horizontal and vertical axes (90° x 50°)
• 121 dB Max.SPL
• Multifunctional trapezoidal enclosure with 17 flying points
The DX8.1 is a compact full range, high power loudspeaker system with 8" and 1" transducers With a coverage of 90 x 50 degrees, the DX8.1 is the ultimate tool for medium and long throw applications If a wider horizontal coverage or a higher SPL is needed it is possible to combine more systems to powerful arrays with very homogenous sound dispersion Even at distance the DX8.1 sounds very direct, also at very high sound pressure levels the sound is crystal clear and free of color-tion For music programme the use of a subwoofer is recommendable
The well-considered design of the DX8.1 encl-osure and the variety of mounting hardware options allow flexible usage in various sound applications With the 1.75" driver the DX8.1 has the best of both worlds: the fine resolution of a 1.75" driver and the pure power of 1" driver The Horn provides consistent pattern control in both axes already from 1.8 kHz upwards The highly efficient 8" loudspeaker in an optimum ported enclosure produces dear, bone dry lows with high sound pressure levels
The total quality of a passive loudspeaker design,like the DX8.1, depends not only on the use of very high quality woofers and drivers, but a major part of the overall quality depends on the design of the cross-over network Apart from the exactly tuned compensation filters, we use for the first time a passive two step all pass filter, to optimise the phase response and time alignment between the two transducers The result is a hardly noticeable transition between the woofer and the horn driver and a perfect "off axis" frequency response starting at 500 Hz For extra safety there is a built in limiter circuit for the 1.75" driver
The DX8.1 can be used in horizontal and vertical plane A revolving 90x50 degree flare gives the freedom to adjust the DX8.1 for the wanted coverage The enclosure has a trapezoidal shape with two cluster angles, 17 signal stud rigging points and an internal pole mount The DX8.1 M version has one side with an angle of 30/60 degrees for use as a floor monitor
With the DX8.1 the most exacting user gets an excellent full range system that combines the highest possible audio quality with impressive high sound pressure levels
