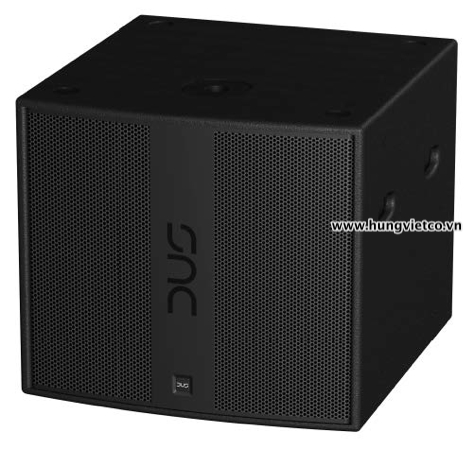

Sub Active Amplifier DXB15AP

• 32 bit DSP Processing, one input, 2 channels output
• 2 x 1000W/8Ω Amplifier with SMPS power supply
• 6 program selectable from the back panel, preset could be loaded by USB connector
• Compact size and light weight

DXB15AP is a high-fidelity sub-woofer in DUS brand , it mainly use with DX4.1, DX5.1, DX4.4, DX4.8  for extended its low-frequency limit.

DXB15AP use a 15 inch speaker which is a latest design methods require low enough frequency limit and high-fidelity output requirement, effective linear displacement of ± 22mm,fully optimized symmetrical magnetic circuit design, all provide a guarantee to reduce enough power distortion . Specially modified rubber edge material can effectively increase the control and flexibility of the products , and excellent damping characteristics provide a guarantee for the product clean and low-frequency output .

DXB15AP applicable for low frequency of high requirement area,indoor bar and outdoor remote can provide good low frequency compensation ,bottom with rubber feet can prevent broken box during the move. Compact cabinet design can be very good blend with the surrounding environment.

DXB15AP use latest active amplifier module, the output power can reach 2 channel 1000w / 8ohm, DSP uses a sampling frequency of 96KHz,32bit of A / D and D / A converters.Inside with gain,limiter,frequency,phase and EQ processing delay.while using the latest USB protocol connected to the PC.

DXB15AP can preset 6 modes and combination with the corresponding product which we produced,to achieve sound reinforcement.DXB15AP enclosure is constructed from rigid ply-wood with a impact resistant black paint . The front of the enclosure is protected by rigid metal grill and cover a replaceable acoustically transparent material ,which can effectively prevent the product from erosion of the dust in daily use.
