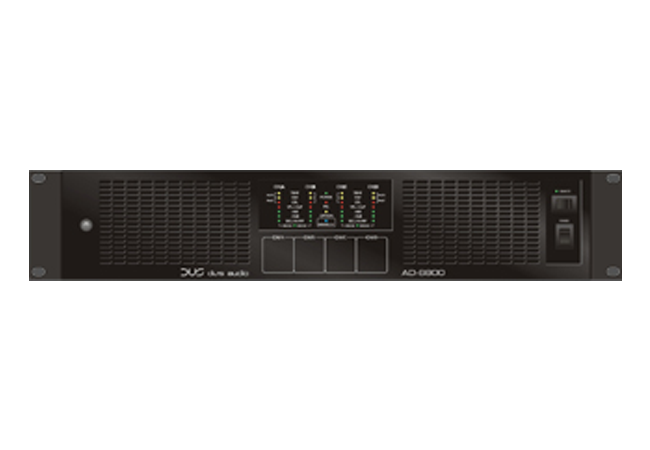

Amplifier Dus Audio AD6800


  • Thông số kỹ thuật
  • Đặc điểm - ứng dụng
  • Peak output voltage per channel: 6800W/141V
  • Max Output Power(2-16Ω): 1200W-650W
  • Input impedance: 20 KΩ
  • Input Common Mode Rejection,CMR: 50dB
  • Frequency response(1W into 8 ohms )+D/-3dB: 2.3Hz - 56kHz
  • THD 20Hz - 20KHz for 1W: <0.1%
  • S/N Ratio: >112dB
  • Cooling: Two fans. front -to-rear airflow. temperature controlled speed
  • Common: Power Average Limiter(PAL):Power on
  • Power Operatingvoltage.230v/115v nominal: 130-265V/65-135V
  • Minimum power-up vollage,230V/115V: 171V/85V
  • Dimensions (WxHxD) 483 x 343 x88mm
  • Weight(kg) N .W:12
  • Congratulations for choosing AD Series professional power amplifier. You purchased one of the finest stereo amplifiers on the market today . This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new AD Series amplifier has superior performance and greater flexbility than any other amplifiers in its price range. Please read this manual carefully to get the most out of your new unit .
  • Offering top power, superioer performance and full professional operating features in roadworthy compact chassis, the AD Series are perfect for even the most demanding sound reinforcement installation and touring applications.
  • The operating instruction in this manual are for the AD Series power amplofiers. The operation and functions of these units are the same, except as noted.
  • Full operating features:detent volume controls ; paralle balanced XLR inputs; stereo(dual channel) . parallel input, or bridged mono operating ,odes with selector switch; binding post(banana plug) outputs; ground lift switch.
  • Full safety/reliability features: 4 dual speed fans for cooling; soft start turn on, noise- free on-off ;built-in DC offset; independent DC and thermal overload protection on each channel; short circuit and speaker protection; DC servo operation; built-in digital current limiter.
  • Power ON,Clip, Signal, and Protect LED indicators for each channel.
  • Roadworthy: rugged double rack space (4U) housing .
  • ~230V (50Hz) AC select switch and IEC power cord.
